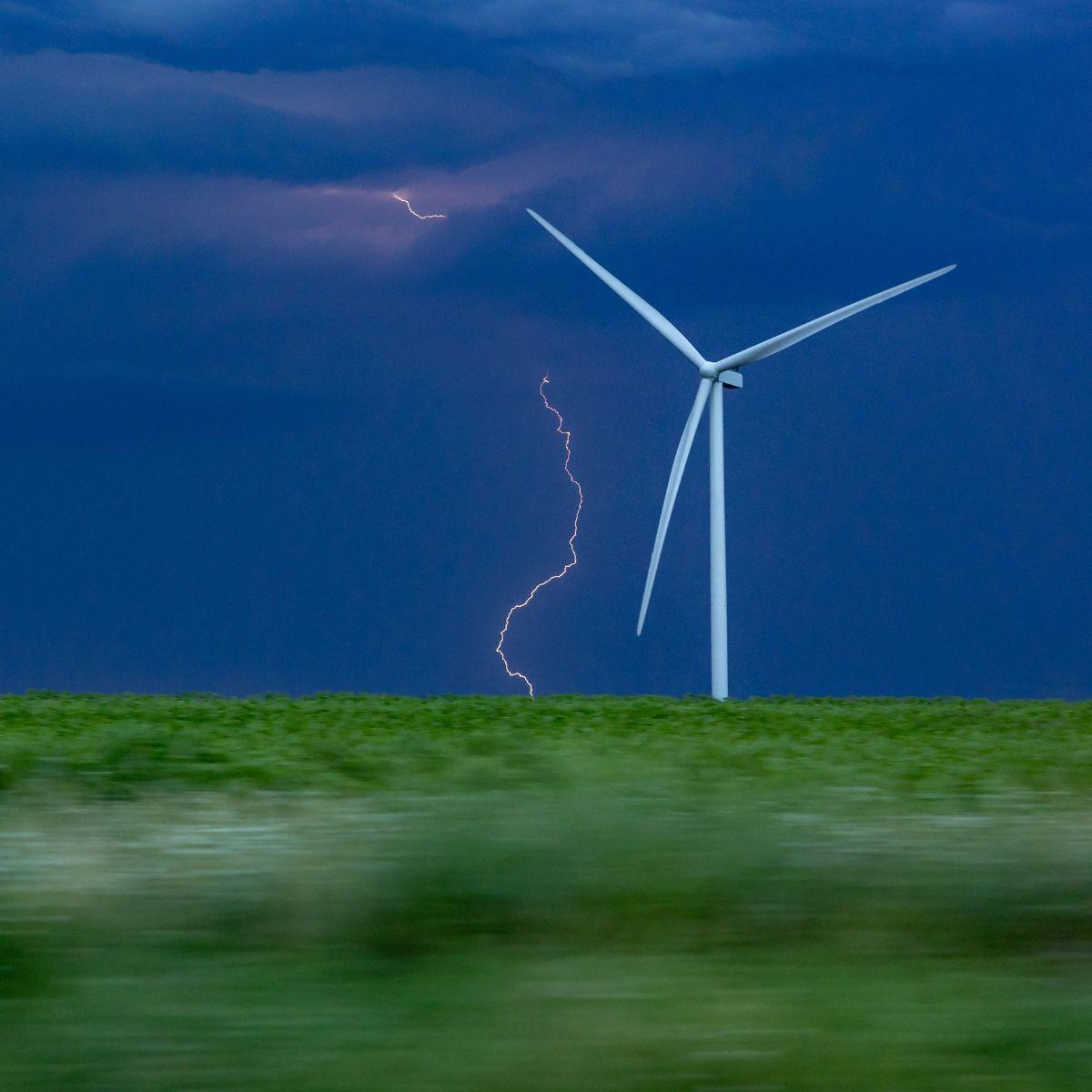

Protecting wind turbines with effective lightning protection systems

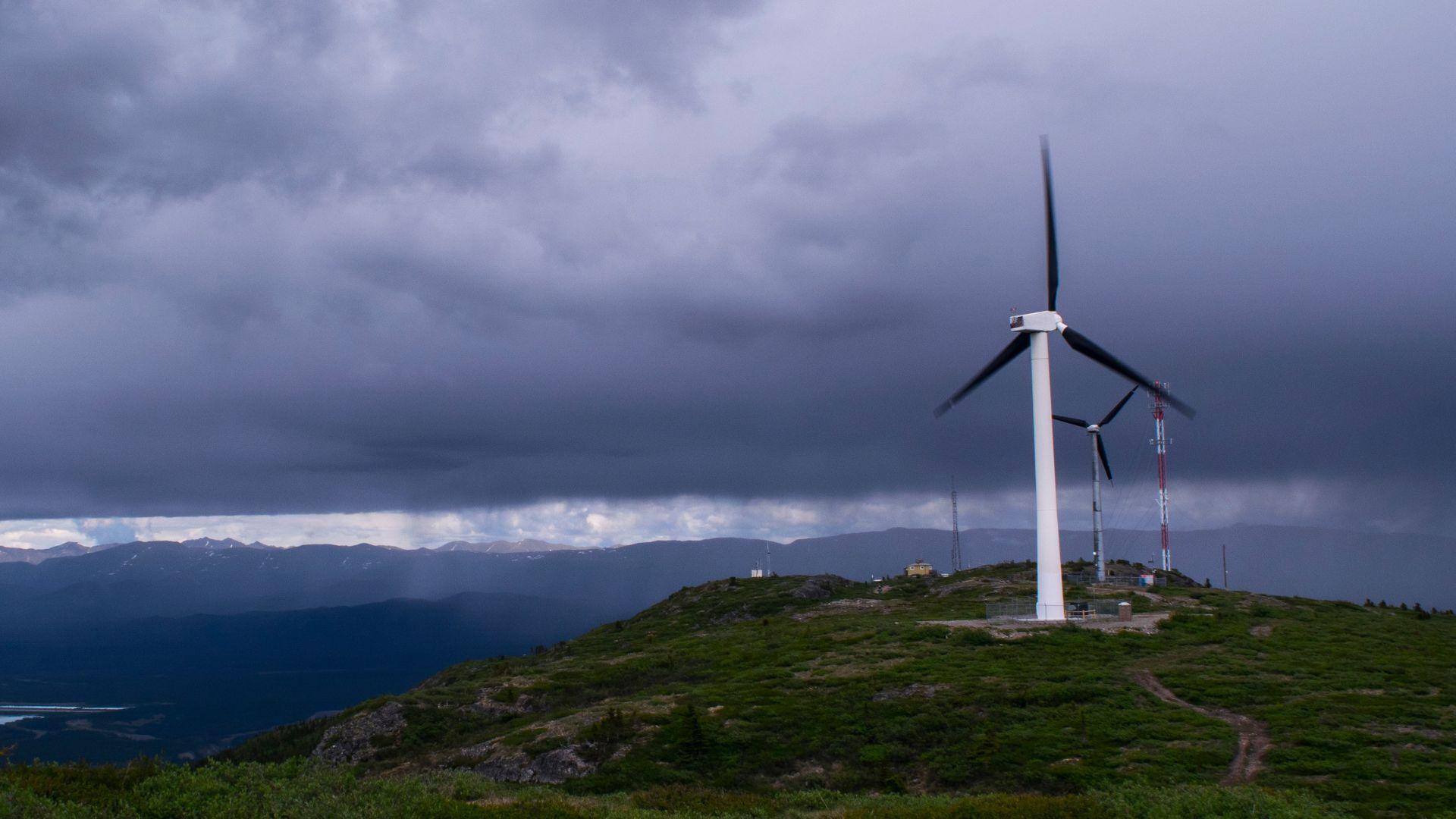

Wind turbines, towering above landscapes, are naturally vulnerable to lightning strikes. Ensuring their longevity and operational efficiency requires robust Lightning Protection Systems (LPS). These systems are meticulously designed to channel the immense energy from lightning strikes safely to the ground, minimizing potential damage.



Here, we explore the key components of an LPS, the importance of routine inspections, and actionable recommendations to maintain optimal performance.

Wind turbine LPS are engineered to meet rigorous standards, such as IEC 61400-24, enabling them to handle lightning currents between 100-200kA without significant wear. The system ensures that lightning strikes, which typically target the turbine blades, are safely directed to the ground.

1. Receptors

Located on blade tips, receptors are metallic components (often copper-based alloys) designed to attract lightning. They transfer the electrical charge to the internal conductor.

• Common issues: Wear, corrosion, or poor connections can impair their functionality.
• Maintenance tips: Inspect for scorching, deformation, or other signs of damage regularly.



2. Receptor block

The receptor block is an aluminum unit embedded in the blade that links the receptor to the down conductor cable.

• Common issues: Corrosion or poor contact can disrupt the flow of current.
• Maintenance tips: Regularly measure electrical resistance and inspect for connection integrity.



3. Down conductor cable

Running through the blade, this cable channels lightning current from the receptor block to the turbine’s root.

• Common issues: Fatigue or connection failures.
• Maintenance tips: Use drones or internal inspections to identify separation or damage early. Additionally, utilize specialized tools, like our :CONDUCTOR LIGHTNING, to pinpoint weaknesses or damage in conductors that could lead to system failures.



4. Root connection

This critical juncture connects the down conductor cable to the turbine’s grounding system.

• Common issues: Failures here can force lightning to seek alternative paths, risking damage to components like blade bearings.
• Maintenance tips: Ensure secure connections through routine checks.



5. Lightning transfer system

This system safely transfers lightning energy from the root connection to the ground using components such as spring couplings, brushes, or spark gaps.

• Common issues: Wear or contact degradation can reduce effectiveness.
• Maintenance tips: Inspect for poor contact or wear during routine maintenance.

Routine inspections are vital for maintaining an LPS’s integrity and functionality. They help identify and address issues such as:

• Wear on receptors.
• Corrosion or loose connections in the receptor block.
• Fatigue in down conductor cables.
• Poor grounding connections.

Using advanced techniques like drone inspections can improve efficiency and ensure hard-to-reach components are evaluated thoroughly.

A poorly maintained LPS exposes turbines to catastrophic lightning damage, including:

• Cracked blades or scorched surfaces.
• Bearing and drivetrain failures.
• Damage to electrical systems.
• Extended downtime and costly repairs.

Proactive maintenance can mitigate these risks, enhancing turbine reliability and safety.

1. Regular inspections

• Check receptor wear, sealant integrity, and resistance.
• Inspect down conductor connections during planned maintenance.



2. Leverage advanced tools

• Use drones for internal inspections.
• Install lightning trackers for better data and protection strategies.



3. Prioritize component health

• Monitor grounding systems and address wear promptly.

By maintaining an effective LPS, operators can significantly reduce the risk of lightning damage, ensuring turbines operate safely, efficiently, and with minimal downtime.



Investing in proactive LPS maintenance protects both turbines and their operators’ bottom lines, making it a critical component of modern wind energy strategies.
